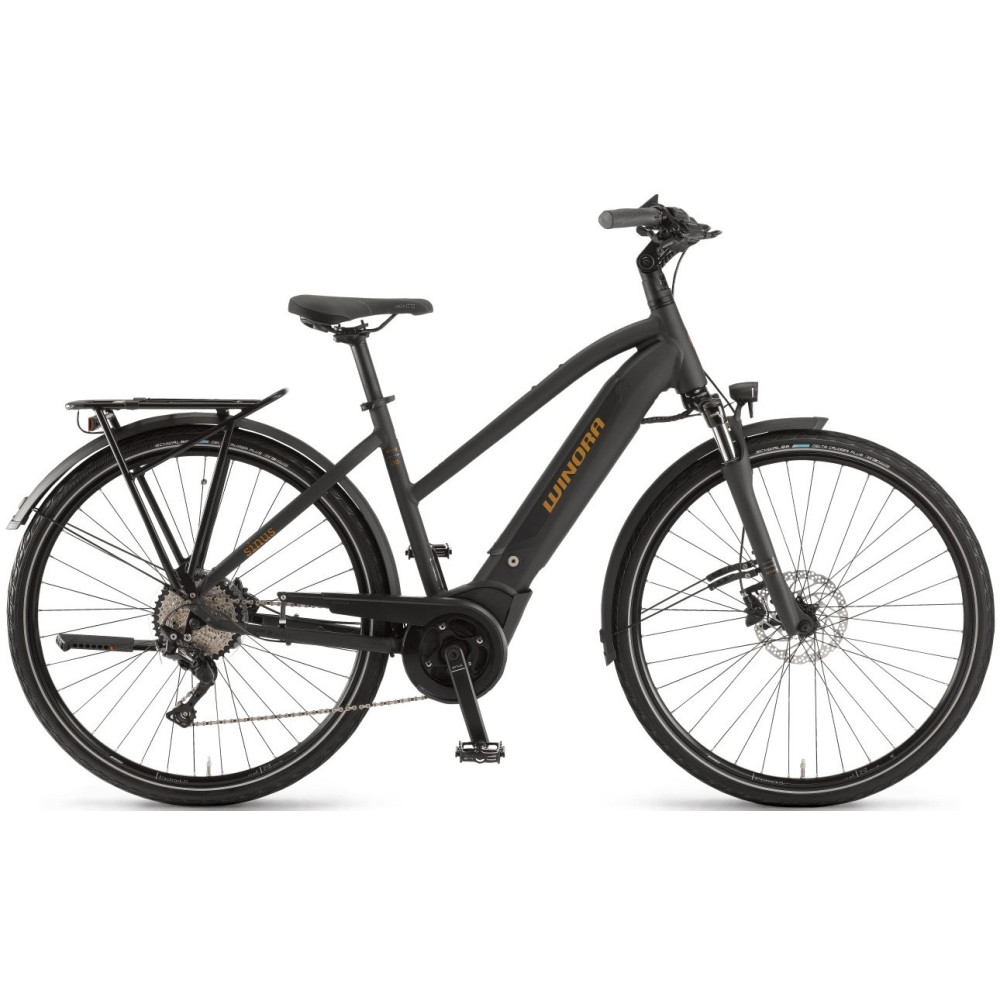

Winora E-Bike Sinus I10 Woman 2020
In-tube battery and award-winning smart design make our Sinus i-series a great transition bike for active riders who are ready for an E-Bike but prefer classic lines. You’re well equipped for both your daily routes as well as extended rides in the countryside with our versatile WINORA Sinus i10 eBike. The Bosch Performance Line electric motor will get you where you want at speeds up to 25 km/h. You will be ready for any eventuality with fine-tuned, hydraulic disc brakes, smooth 10-speed Shimano gearing and sturdy Road Cruiser tyres from Schwalbe.
|
Specifications
|
||
|
ENGINE
|
DISPLAY
|
BATTERY
|
|
Bosch, Performance Line, 250 W, 65 Nm, 25 km/h |
Bosch, Kiox |
Bosch, PowerTube, 500 Wh |
|
FRAME FAMILY
|
FORK
|
CRANK ARM
|
|
Winora, Aluminium 6061, hydroformed, THT, Bosch Interface, Aluminium 6061 |
SR Suntour, NEX E25-HLO, Lockout, Steel spring, Travel= 63 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered |
Winora, forged, Aluminium |
|
BRAKE (FRONT)
|
BRAKE (REAR)
|
TUBE
|
|
Shimano, MT400, 180 mm, 2-piston disc brake |
Shimano, MT400, 160 mm, 2-piston disc brake |
Dunlop valve |
|
RIM
|
CLAMPING RING
|
|
|
Ryde, Zac421, hollow rim, Aluminium |
Quick release, 34.9 mm |
|
|
SHIFT LEVER
|
BOTTOM BRACKET
|
CHAIN GUARD
|
|
Shimano, Deore M6000, Rapidfire, 10 speed |
integrated in the motor
|
Horn, Catena 18 |
|
SPROCKET
|
CHAIN
|
CHAINRING
|
|
Shimano, HG500, 11 - 42 teeth |
KMC, e10S |
Samox, 38 teeth |
|
BRAKE LEVER
|
BRAKE DISC (FRONT)
|
BRAKE DISC (REAR)
|
|
Shimano, MT401-3, Aluminium |
Shimano, RT30-M |
Shimano, RT30-S |
|
TYRE
|
FRONT WHEEL HUB
|
REAR WHEEL HUB
|
|
Schwalbe, Delta Cruiser Plus , 47-622, 28" x 1.75" |
aluminium hub, Centerlock |
aluminium hub, Centerlock |
|
SPOKES
|
HANDLEBAR
|
GRIPS
|
|
Stainless spokes, black |
Ergobar, oversize, 640 mm |
XLC, Comfort bo3 |
|
STEM
|
HEADSET
|
SADDLE
|
|
Alu, winkelverstellbar, A-head, Bar bore: 31.8 mm |
Feimin, A-Head Tapered, Aluminium, cartridge bearing |
Selle Royal, Viento |
|
SEAT POST
|
PEDALS
|
HEADLIGHT
|
|
Patent, 31.6 mm, Aluminium |
VP, E461, Aluminium, with Reflector |
Busch & Müller, Myc, 50 lm |
|
REAR LIGHT
|
LOCK
|
CARRIER
|
|
Busch & Müller, Shine Evo, integrated in the luggage carrier |
Abus, upgradable over Plus System |
Racktime, RT-336, 25.0 kg |
|
FENDERS
|
STAND
|
WEIGHT (KG)
|
|
RPZ, Evo, Chromoplastics |
Ursus, Mooi, Rear stand |
25.0 kg |
|
PERMITTED TOTAL WEIGHT (KG)
|
|
|
|
130.0 kg |
Winora - Sinus I10 Women- Size Chart
| Batteries | 500 Wh |
| Max Load | 130 kg |
| Weight | 25.0 kg |
| Taille des roues | 28" |
| Top Speed | 25 Km/h |
| Collections | 2020 |
