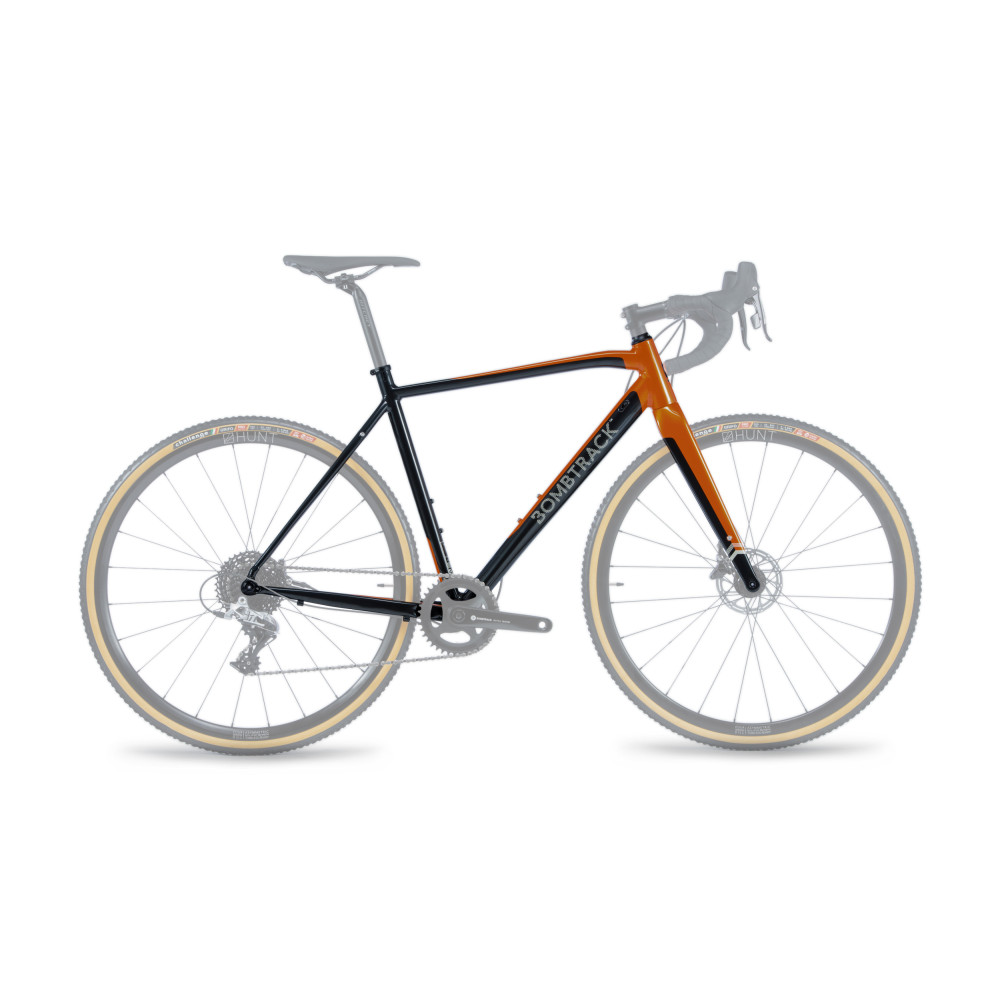

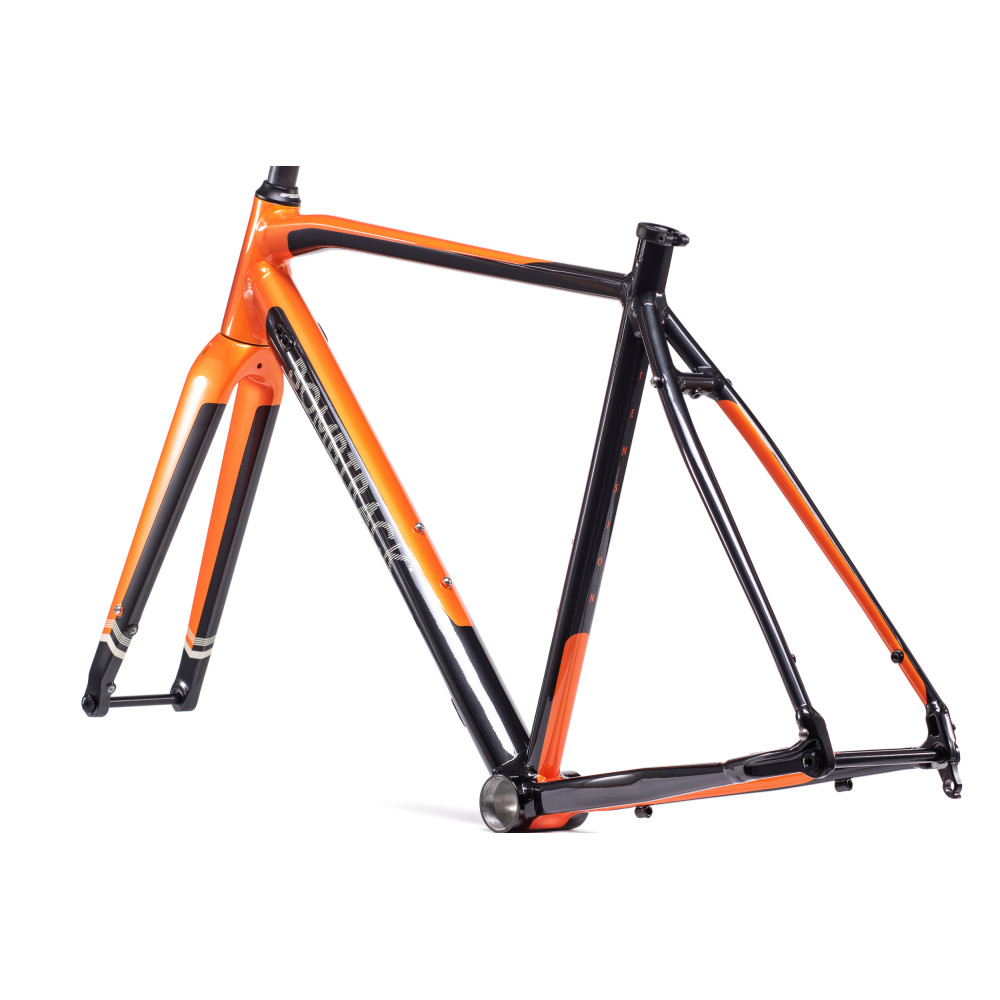

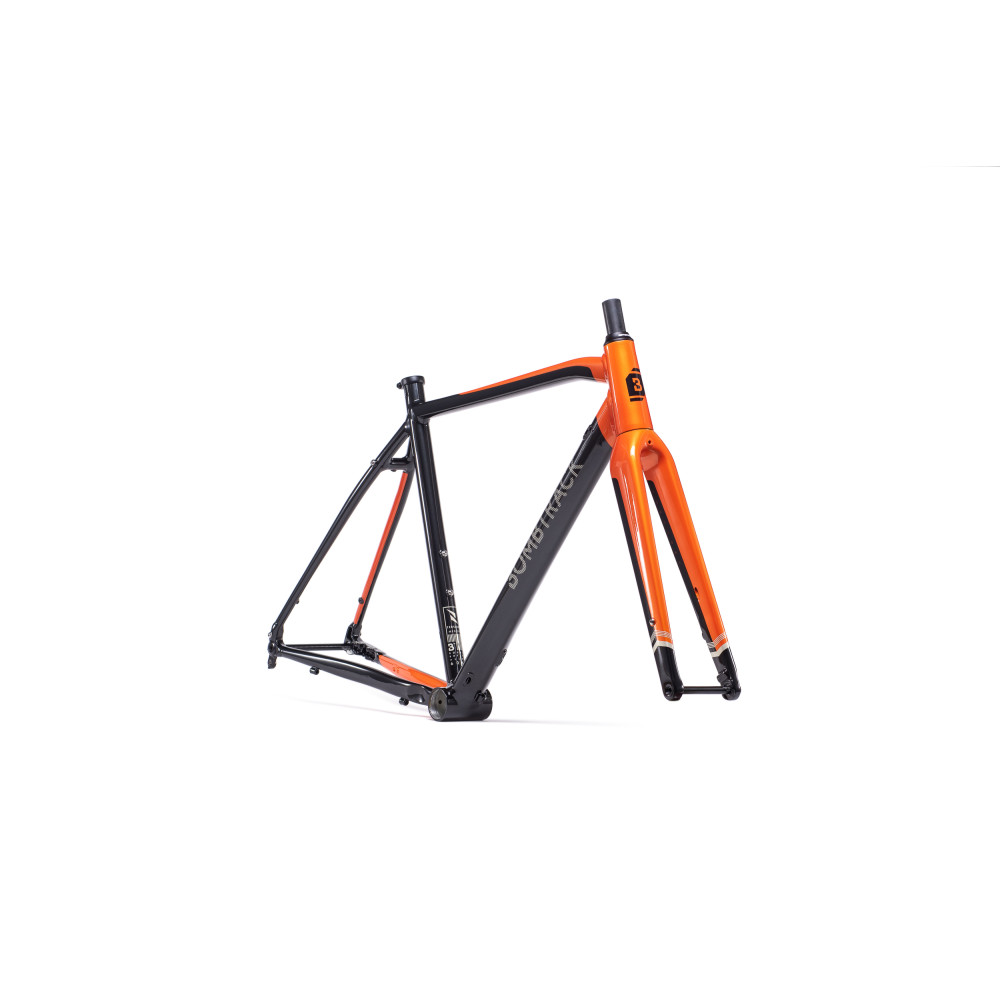

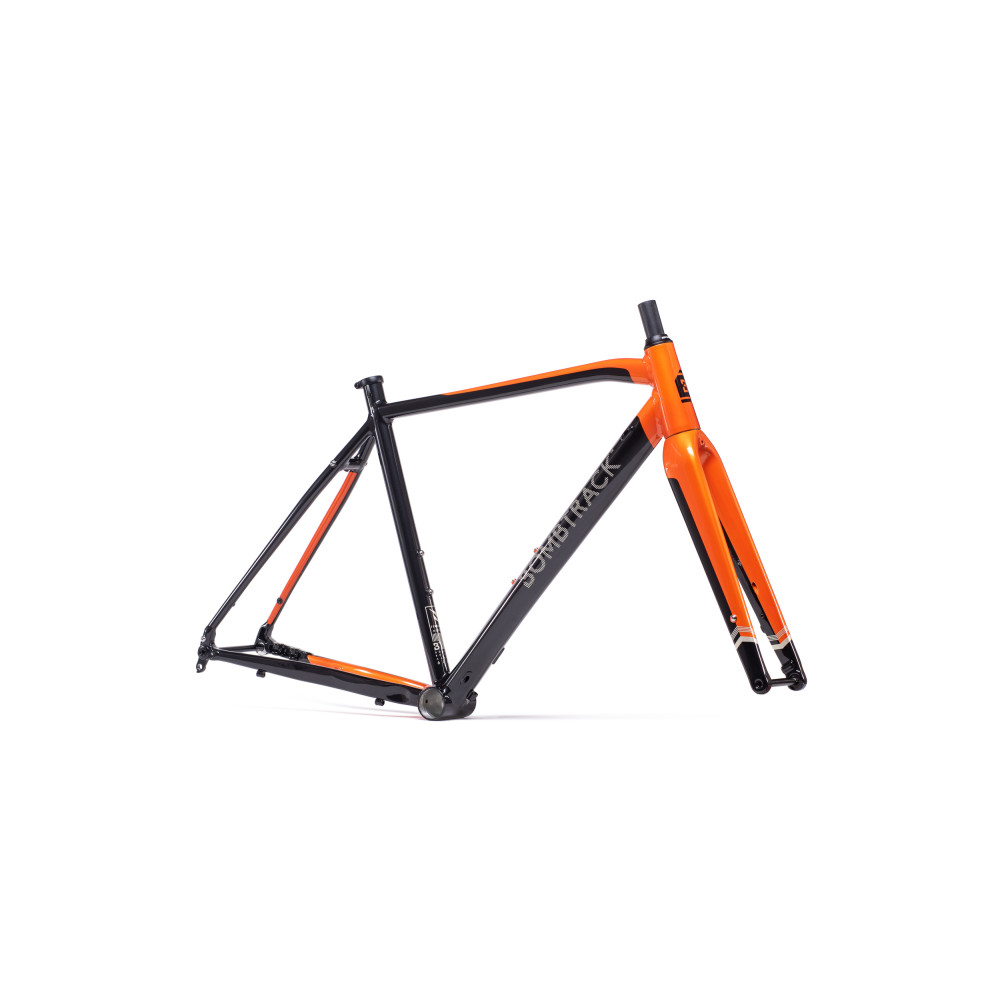

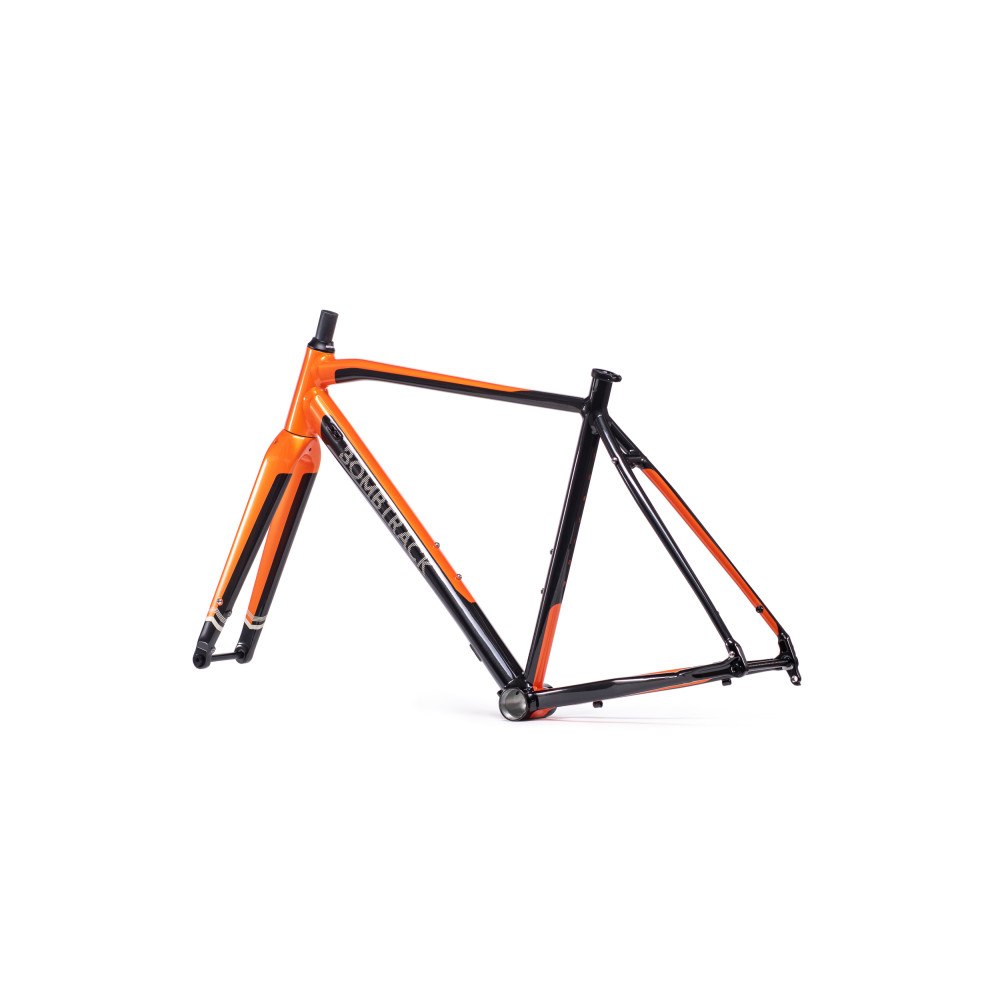

Bombtrack Tension 2 Orange Frame Fork Set 2020
A hydroformed aluminium frame and carbon fork to provide a full-on racing experience. With a threaded T47 bottom bracket, it’ll survive multiple season’s worth of mud without complaint.
Highlights
Full carbon fork with through axles and flat mount disc brake.

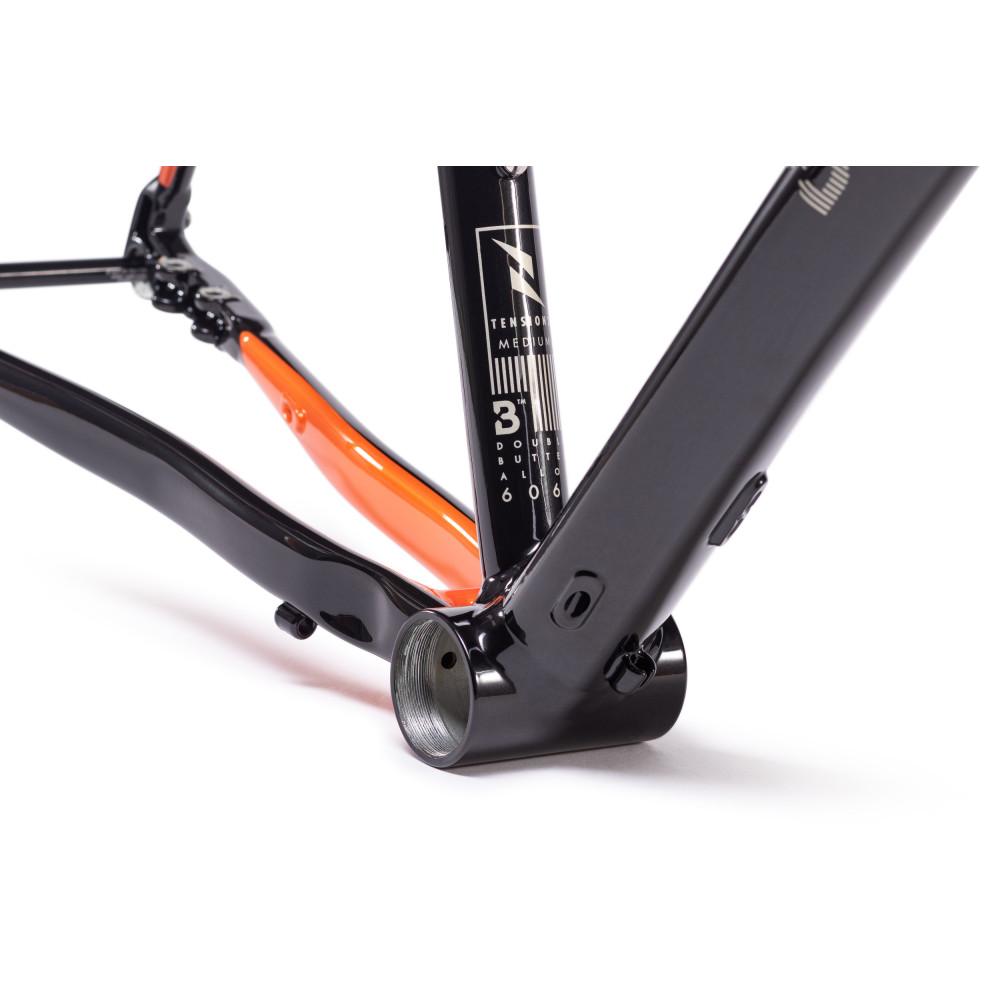

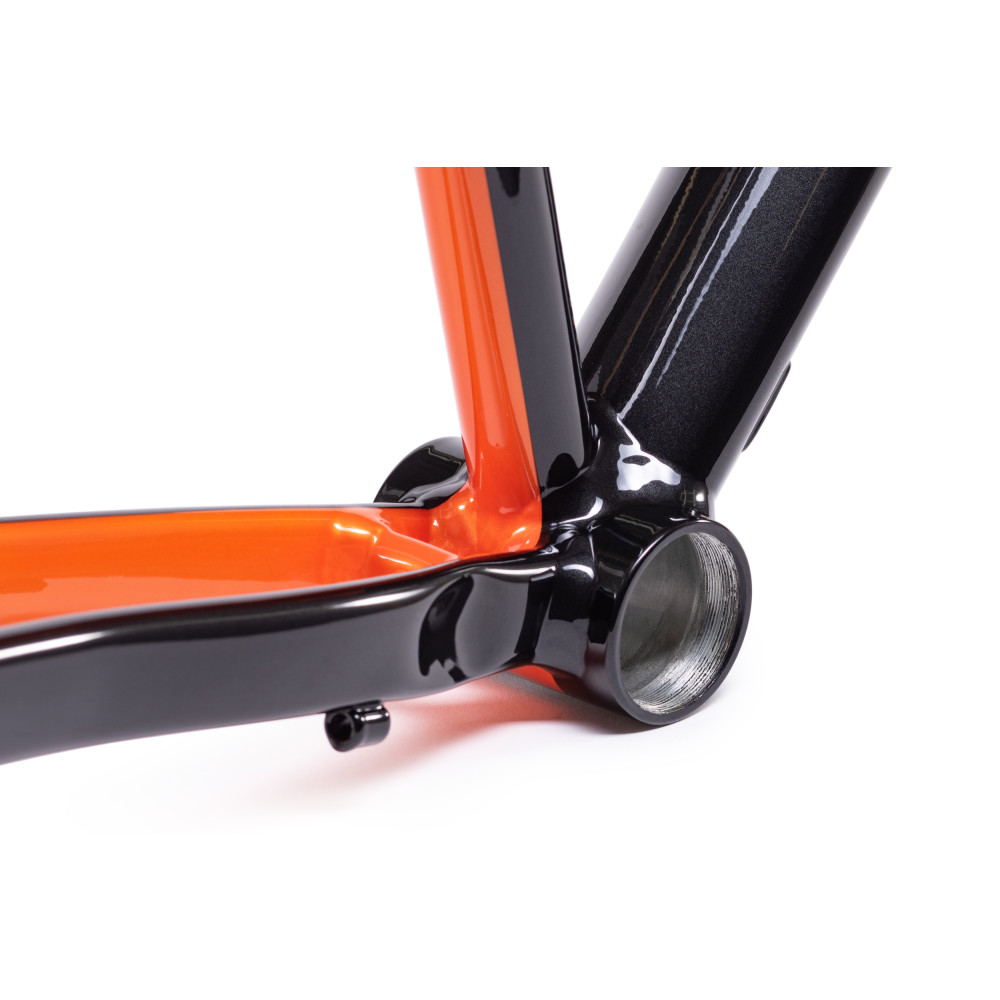

Lightweight aluminum frame with heavily hydro formed tube profiles and T47 bottom bracket.
Product details :
WHEEL SIZE | 700C |
COLOR 1 | Glossy Black / Metallic Orange |
COLOR 2 | - |

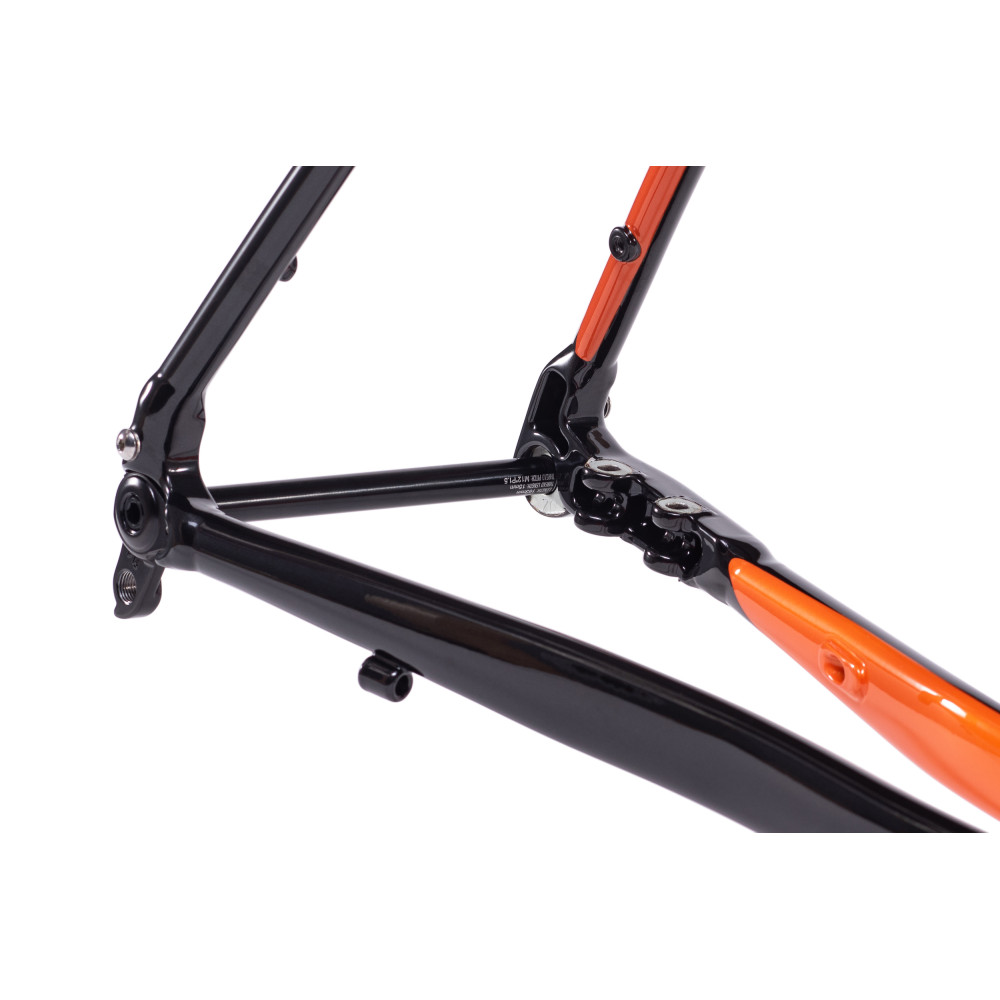

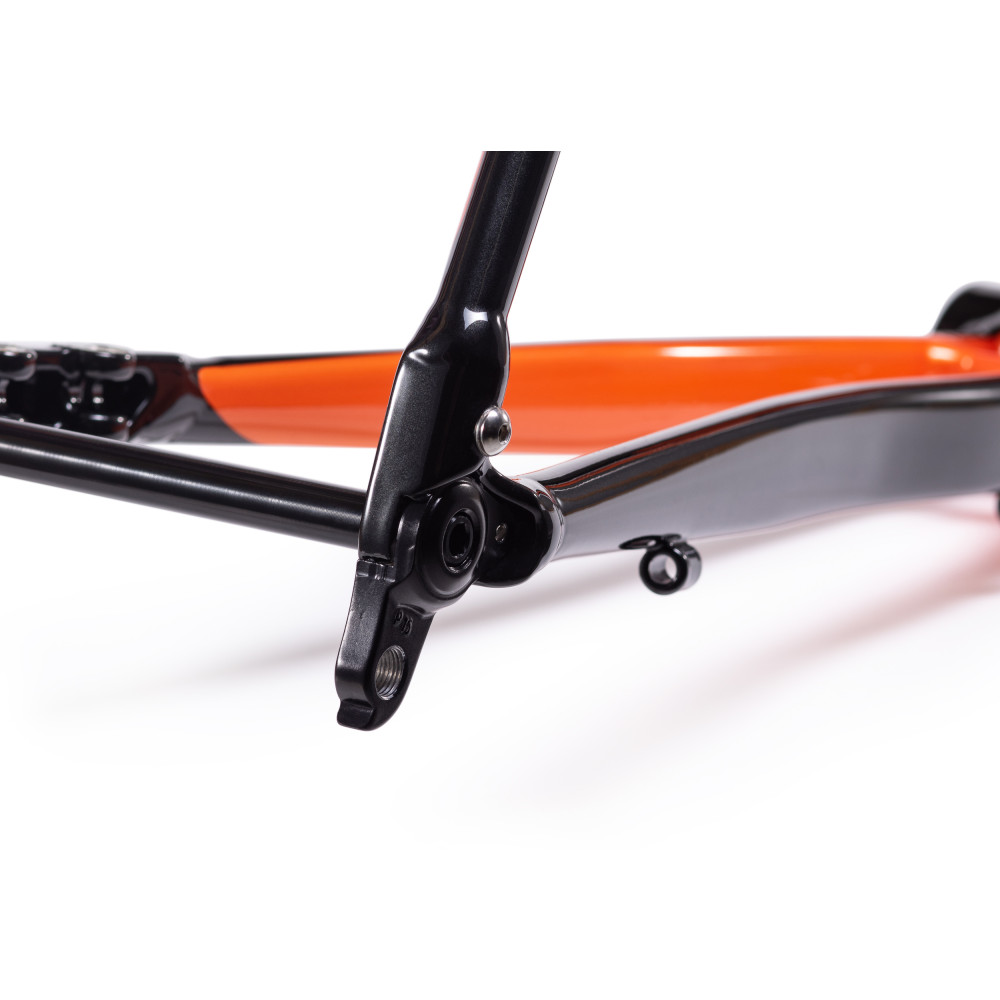

FRAME | 6061-T6 double butted alloy, tapered head tube, TA dropouts, replaceable hanger |

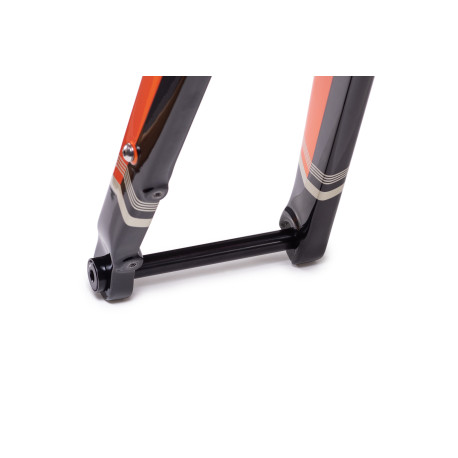

FORK | full carbon TA disc fork, 1.1/2'' - 1.1/8'' tapered steerer with fender mounts |
HEADSET | FSA ORBIT C40 sealed integrated aheadset, 1.1/2'' - 1.1/8'' |
BB SHELL STANDARD (BB NOT INCL.) | T47, 86.5 mm shell |

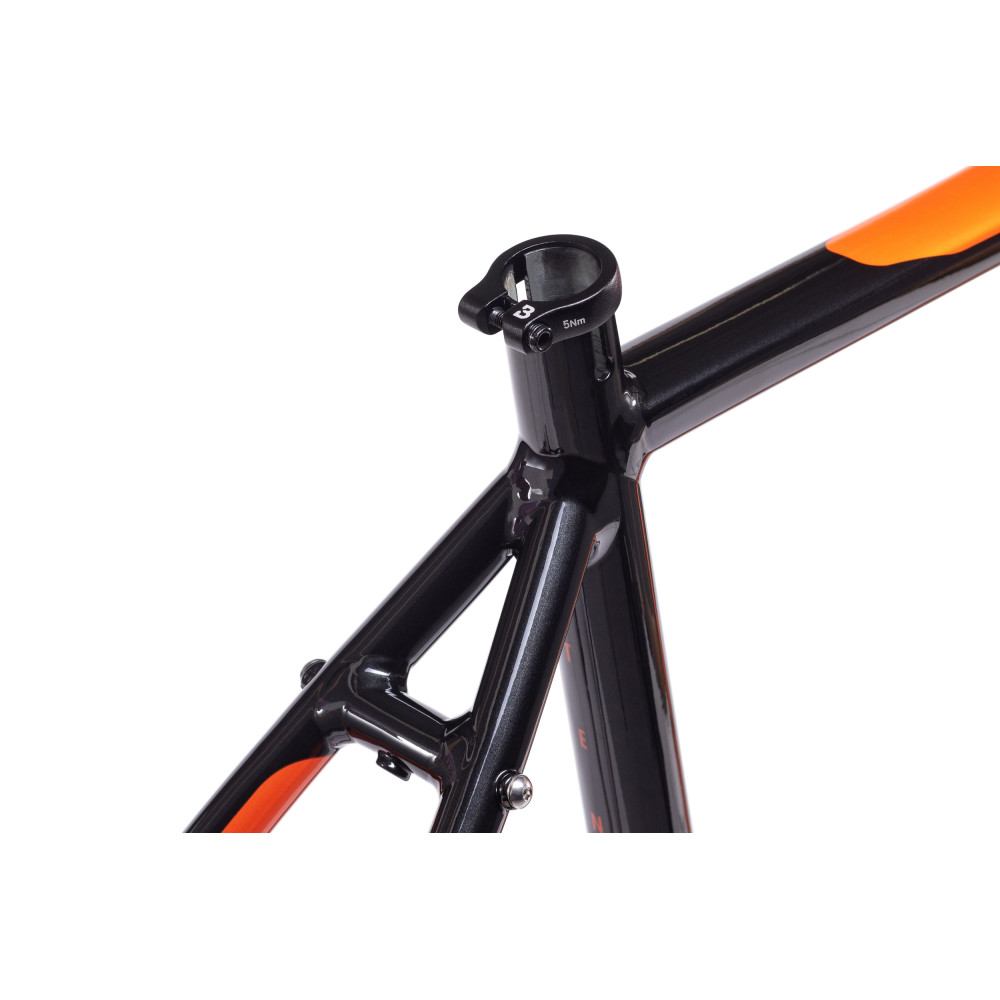

SEAT CLAMP | BOMBTRACK ORIGIN forged alloy seat clamp, 31.8 mm |
AXLE TYPE FRONT | TA 12 x 100 mm; M12 x 1.5 mm |
AXLE TYPE REAR | TA 12 x 142 mm; M12 x 1.5 mm |
BRAKE TYPE | Flatmount disc F / R |
WEIGHT | Frame 1695 g (size M), Fork 581 g (300 mm steerer) |
Frame size | S | M | L | XL |
Seat Tube Length (C-T, mm) | 500 | 530 | 560 | 590 |
Horizontal TT length (mm) | 534 | 552 | 570 | 586 |
Color | Black/orange |
Height Frame | 56 cm |
Height Frame | 53 cm |
Length top tube | 22.00" |
Length top tube | 23.50" |
Length top tube | 21.25'' |
Length top tube | 22.75'' |
Weight | 1.70 kg |
Taille des roues | 27" |
Collections | 2020 |
