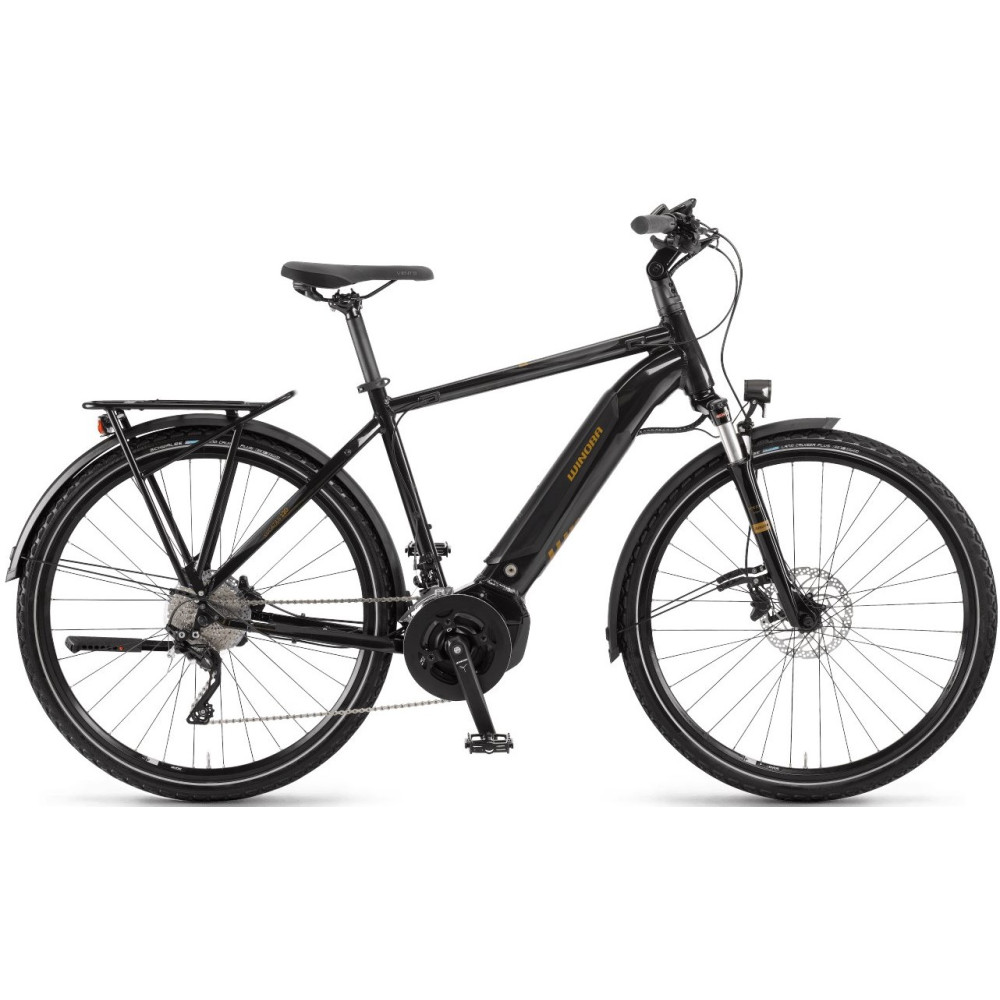

Winora E-Bike Yucatan I20 Man 2021
Our sleek Yucatan trekking bikes are designed for the stylish adventurer who wants a dependable, reliable E-Bike that will handle the open road and trail delivers. Our new, versatile Yucatan i20 is intended for all cycling fans from urban trekkers to commuters looking to head out to the great outdoors. With smooth disc brakes and 20 speed gearing, the Yucatan i20 is your ideal companion for long rides and sporting competitions. The tried and tested Yamaha motor with 70 Nm torque will power you safely up all slopes and through hilly terrain while a carrier allows you to carry everything you need for an adventurous ride.
|
Specifications
|
||
|
ENGINE
|
DISPLAY
|
BATTERY
|
|
Yamaha, PW-ST System, 250 W, 70 Nm, 25 km/h |
Yamaha, Multi Switch, 2.8" TFT, 16 functions |
Yamaha, InTube, 500 W |
|
FRAME FAMILY
|
FORK
|
CRANK ARM
|
|
Winora, Aluminium 6061, Yamaha InTube, HD Interface, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount |
SR Suntour, NCX D-LO, Lockout, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8", Quick release 100mm |
Winora, forged, Aluminium |
|
BRAKE (FRONT)
|
BRAKE (REAR)
|
TUBE
|
|
Shimano, MT400, 180 mm, 2-piston disc brake |
Shimano, MT400, 160 mm, 2-piston disc brake |
Presta valve |
|
RIM
|
CLAMPING RING
|
REAR DERAILLEUR
|
|
Ryde, Zac421, hollow rim, Aluminium |
Quick release, 34.9 mm |
Shimano, Deore XT M781 |
|
SHIFT LEVER
|
BOTTOM BRACKET
|
CARRIER
|
|
Shimano, Deore M6000, Rapidfire, 20 speed |
integrated in the motor |
Racktime, RT-336, 25.0 kg |
|
SPROCKET
|
CHAIN
|
CHAINRING
|
|
Shimano, HG50, 11 - 36 teeth |
KMC, e10S |
Aluminium, 48 teeth |
|
BRAKE LEVER
|
BRAKE DISC (FRONT)
|
BRAKE DISC (REAR)
|
|
Shimano, MT401-3, Aluminium |
Shimano, RT30-M |
Shimano, RT30-S |
|
TYRE
|
FRONT WHEEL HUB
|
REAR WHEEL HUB
|
|
Schwalbe, Land Cruiser Plus, 47-622, 28" x 1.75" |
aluminium hub, Centerlock |
aluminium hub, Centerlock |
|
SPOKES
|
HANDLEBAR
|
GRIPS
|
|
Sapim, Leader, black |
Ergoriser, oversize, 640 mm |
XLC, Comfort bo3 |
|
STEM
|
HEADSET
|
SADDLE
|
|
Alu, winkelverstellbar, A-head, Bar bore: 31.8 mm |
Feimin, A-Head Tapered, Aluminium, cartridge bearing |
Selle Royal, Viento |
|
SEAT POST
|
PEDALS
|
HEADLIGHT
|
|
Patent, 31.6 mm, Aluminium |
VP, E461, Aluminium, with Reflector |
Herrmans, H-Black MR4, 40 lm |
|
REAR LIGHT
|
LOCK
|
CARRIER
|
|
AXA, Blueline |
AXA, Solid Plus |
Racktime, RT-336, 25.0 kg |
|
FENDERS
|
STAND
|
PERMITTED TOTAL WEIGHT (KG)
|
|
RPZ, Evo, Chromoplastics |
Ursus, Mooi, Rear stand |
130.0 kg |
|
|
||
|
|
Winora - Yucatan Man- Size Chart
| Batteries | 500 Wh |
| Max Load | 130 kg |
| Weight | 23.9 kg |
| Taille des roues | 28" |
| Top Speed | 25 Km/h |
| Collections | 2021 |
