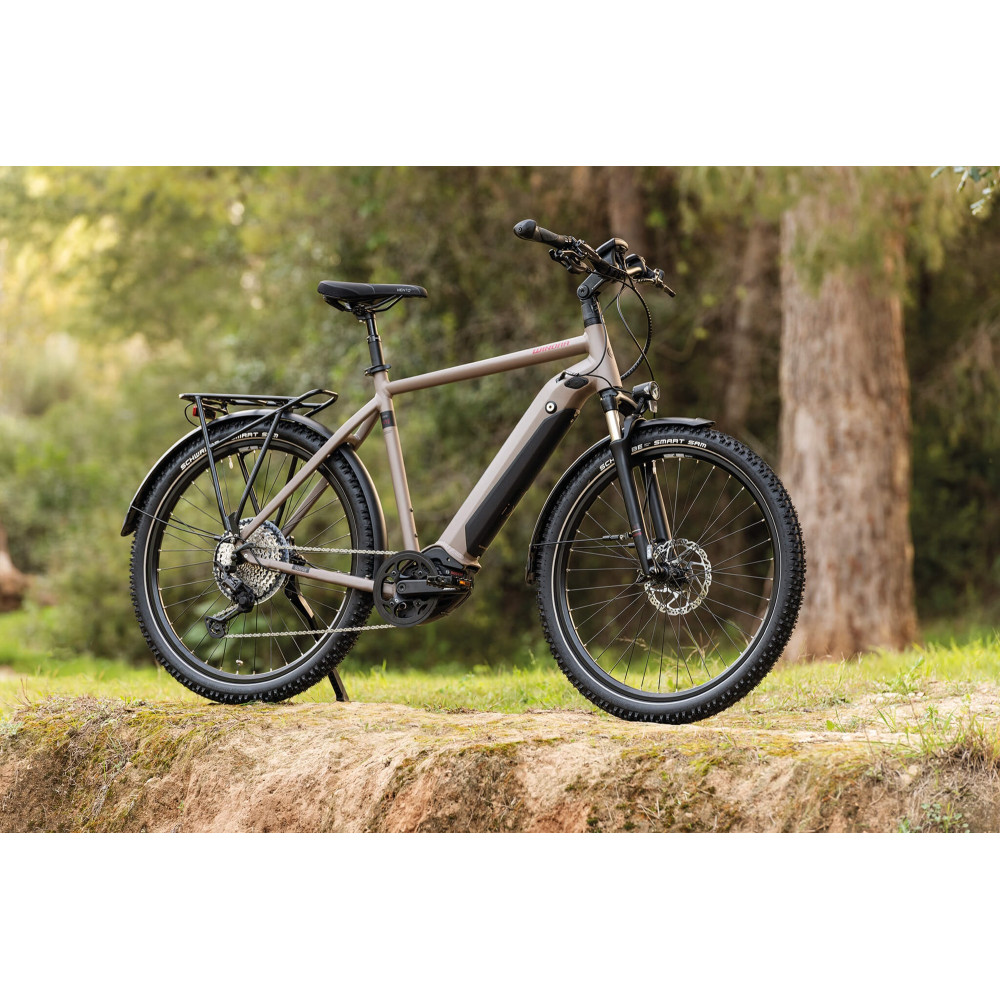

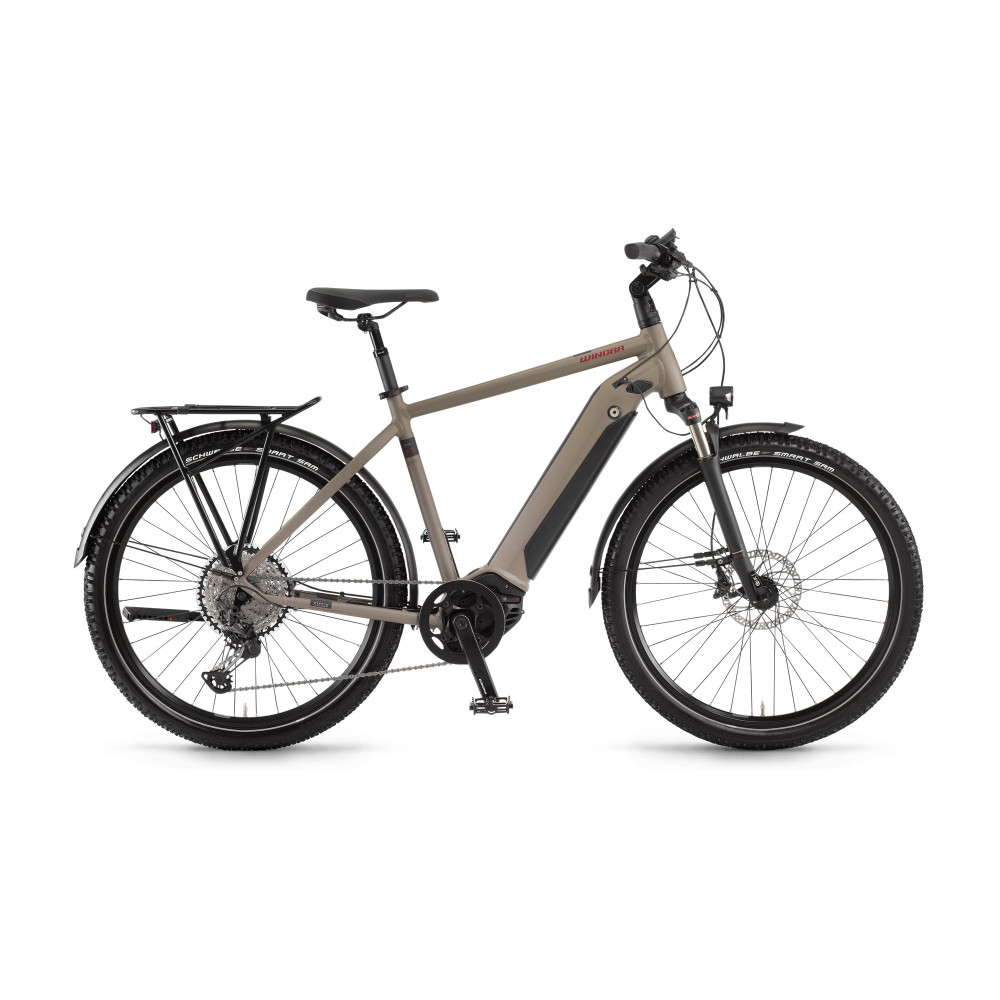

Winora E-Bike Sinus IX12 Homme 2021
Our new, versatile WINORA Sinus iX12 is intended for those who are making the transition to family biking but don't want to sacrifice the thrill of the ride. 27.5" tyres, innovative MRS system make it a sporty SUV ebike. Powerful and dynamic, the Bosch Performance CX Gen 4 motor with 85Nm of torque always propels you up every slope. You are well equipped for every dirt or gravel track with finely tuned hydraulic disc brakes, smooth 12-speed gearing from Shimano and sturdy Smart Sam tyres from Schwalbe. This means a more comfortable ride as well as providing greater contact surface for greater safety - whether on- or offroad. When are you off on your next ride?
|
Specifications
|
||
|
ENGINE
|
DISPLAY
|
BATTERY
|
|

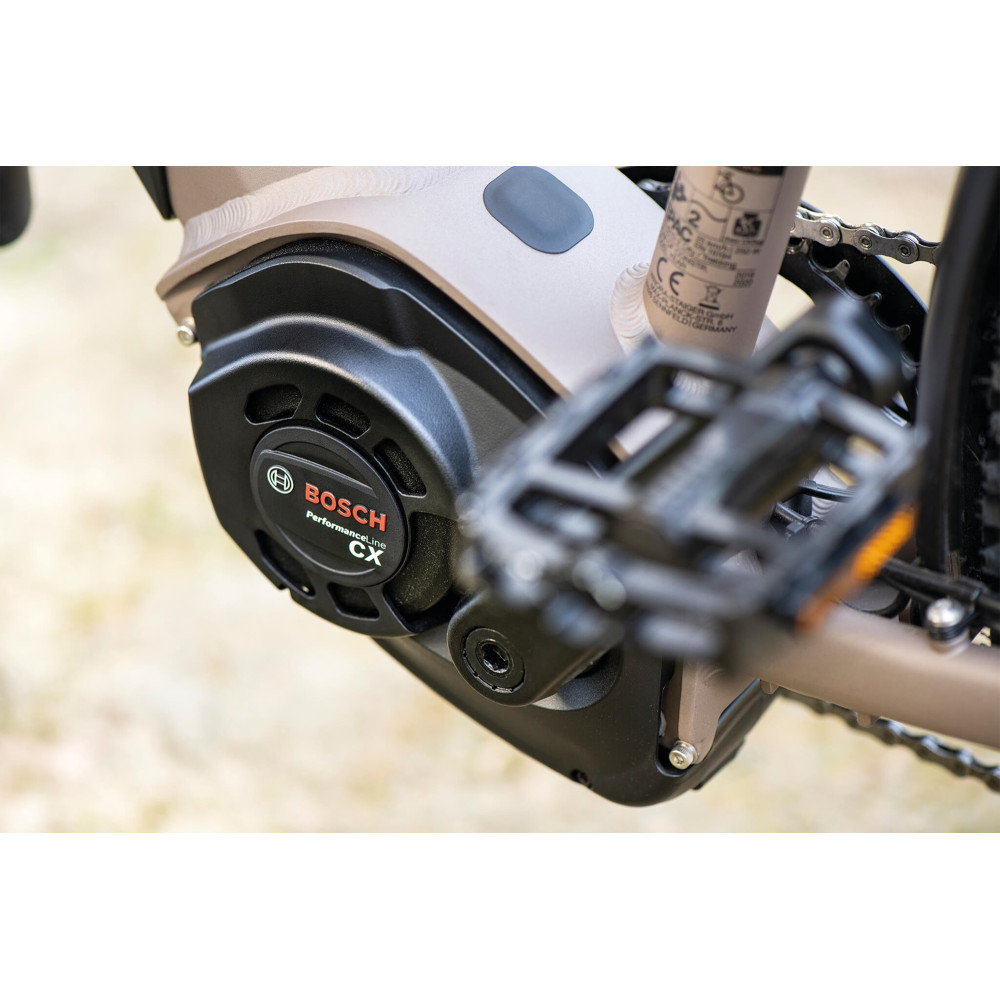

Bosch, Performance CX, 250 W, 75 Nm, 25 km/h |
Bosch, Intuvia |
Bosch, PowerTube, 500 Wh |
|
FRAME FAMILY
|
FORK
|
CRANK ARM
|
|
Winora, Aluminium 6061, multiformed, THT, Aluminium 6061, Disc brake Post Mount |
SR Suntour, NCX D-LO, Lockout, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8", Quick release 100mm |
Winora, forged, Aluminium |
|
BRAKE (FRONT)
|
BRAKE (REAR)
|
TUBE
|
|
Shimano, Deore XT T8000, hydraulic disc brake, 180 mm, 2-piston disc brake |
Shimano, Deore XT T8000, hydraulic disc brake, 160 mm, 2-piston disc brake |
Dunlop valve |
|
RIM
|
CLAMPING RING
|
REAR DERAILLEUR
|
|
Ryde, Zac421, hollow rim, Aluminium |
Quick release, 34.9 mm |
Shimano, Deore XT M8100 Shadow Plus |
|
SHIFT LEVER
|
BOTTOM BRACKET
|
CARRIER
|
|
Shimano, Deore XT M8100, Trigger switch, 12 speed |
integrated in the motor |
Racktime, RT-336, 25.0 kg |
|
SPROCKET
|
CHAIN
|
|
|
Shimano, SLX M7100, 10 - 51 teeth |
Shimano, SLX M7100 |
|
|
BRAKE LEVER
|
BRAKE DISC (FRONT)
|
BRAKE DISC (REAR)
|
|
Shimano, Deore XT T8000, Aluminium |
Shimano, RT54-M |
Shimano, RT54-S |
|
TYRE
|
FRONT WHEEL HUB
|
REAR WHEEL HUB
|
|
Schwalbe, Smart Sam, 57-584, 27.5" x 2.25" |
Shimano, MT400-B, Centerlock |
Shimano, Centerlock |
|
SPOKES
|
HANDLEBAR
|
GRIPS
|
|
Sapim, Leader, black |
Ergoriser, oversize, 640 mm |
XLC, Comfort bo3 |
|
STEM
|
HEADSET
|
SADDLE
|
|
Alu, winkelverstellbar, A-head, Bar bore: 31.8 mm |
Feimin, A-Head Tapered, Aluminium, cartridge bearing |
Selle Royal, Viento |
|
SEAT POST
|
PEDALS
|
HEADLIGHT
|
|
Patent suspension, 31.6 mm, Aluminium |
VP, E461, Aluminium, with Reflector |
Herrmans, H-Black MR8 E, 50 lm |
|
REAR LIGHT
|
LOCK
|
CARRIER
|
|
Busch & Müller, Shine Evo, integrated in the luggage carrier |
Abus, upgradable over Plus System |
Racktime, RT-336, 25.0 kg |
|
FENDERS
|
STAND
|
PERMITTED TOTAL WEIGHT (KG)
|
|
Eurofender, Winora schwarz matt, Chromoplastics |
Ursus, Mooi, Rear stand |
130.0 kg |
|
|
||
|
|
